공사용 수중펌프
HOME > 제품정보 > 공사용 수중펌프

배수용 수중펌프 (정리 및 토목 공사용) IPCH 시리즈 - 한일자동펌프

페이지 정보

작성자 최고관리자 댓글 0건 조회 381회 작성일 19-03-10 22:03

본문

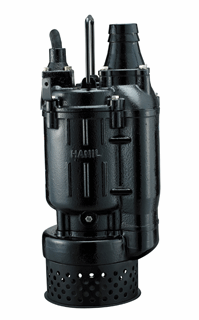

배수용 수중펌프 (정리 및 토목 공사용) IPCH 시리즈 - 한일자동펌프



maindot2.gif 특 징

방수구조 개선으로 물의 침투를 완벽하게 차단
전원선  연결보호 패킹은 연질 PVC사출 및 특수 몰딩 구조로써 물의 침투를 확벽하게 차단 전동기 샤프트 재질은 STS-316사용으로 내식성 강화 노출 운전시 모터에도 효율적인 운전.

maindot2.gif 용 도

  • 토목, 건축 공사장 배수용.
형식 상수.전압
(V.AC)		 정격출력
(HP)		 전부하시전류
(A)		 전양정
(m)		 최대양수량(ℓ/h)
전양정(m)시 		흡상고
(m)		 압상고
(m)		 중량
(kg)		 토출경
(mm)		 제품 크기
(A*B*C)
IPCH-0533 3상
380		 5 8.4 30 42,000(6) 0 30 75 80(A) 250*655*295
IPCH-0733 7.5 12 40 52,000(6) 40 87 80(A) 105*710*270
IPCH-1033 10 16 41 75,000(6) 41 155 100(A) 130*910*360
IPCH-1533 15 24 51 92,000(6) 51 170 100(A) 130*950*360
IPCH-2033 20 32 32 186,000(12) 32 180 150(A) 130*950*360
